DF多翼式離心風機
隔熱耐高溫? ?低噪音? 大風量 防腐蝕
The traditional color still make people happy, and simple tonal collocation, bold stripes can transform bring new look, let you bec

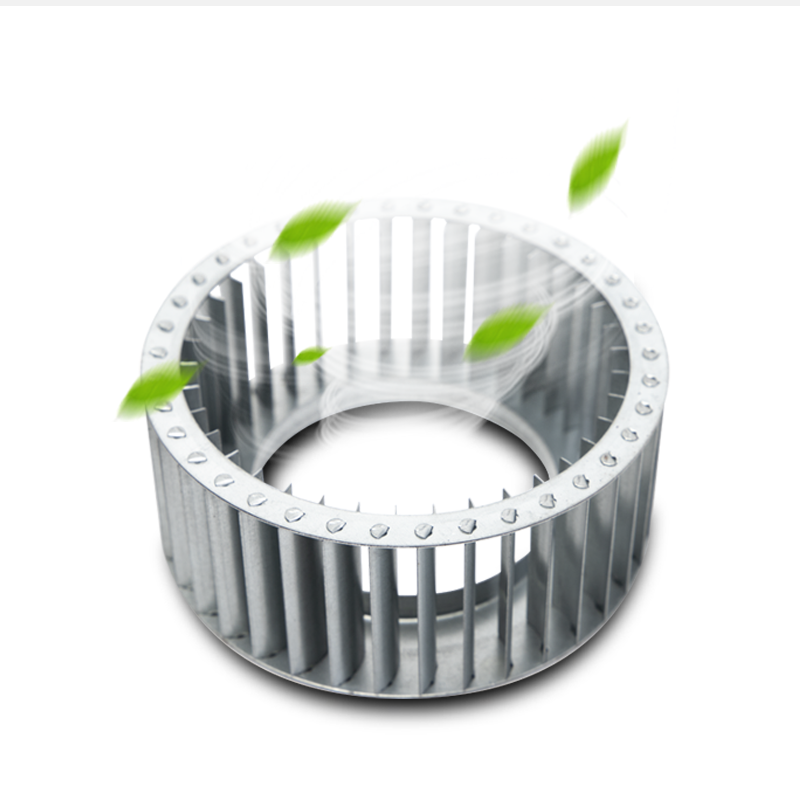

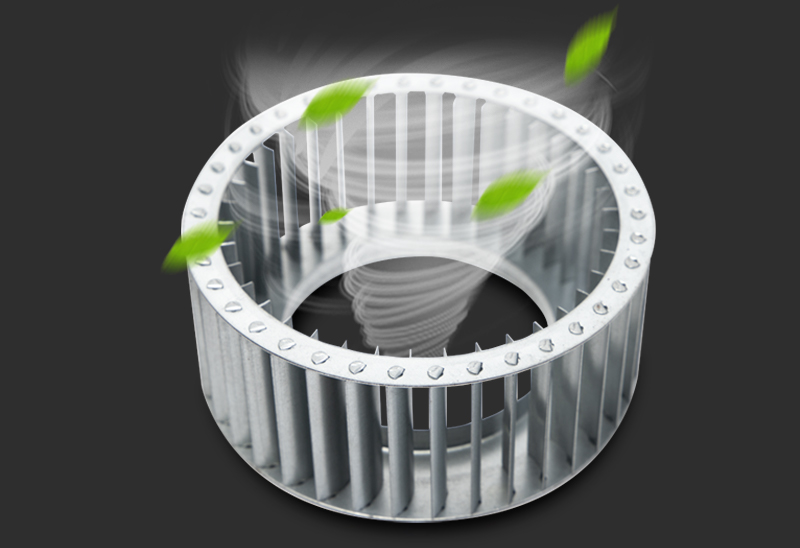

鍍鋅板多翼風葉
不易生銹，耐磨抗氧化，使用壽命長，輕便美觀
Not easy to rust, wear and oxidation resistance, long service life, light and beautiful

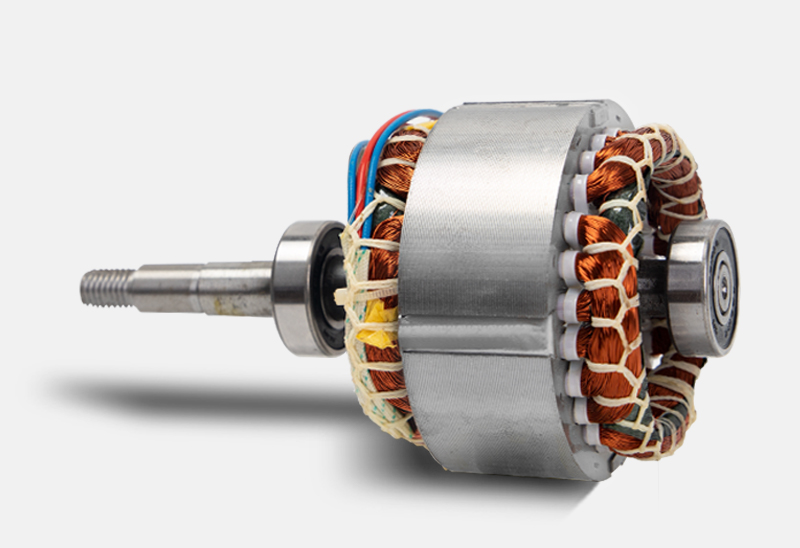

純銅電機
損耗低、效率高、噪音低? 真材實料看得見
Low loss, high efficiency, low vibration, real materials can be seen

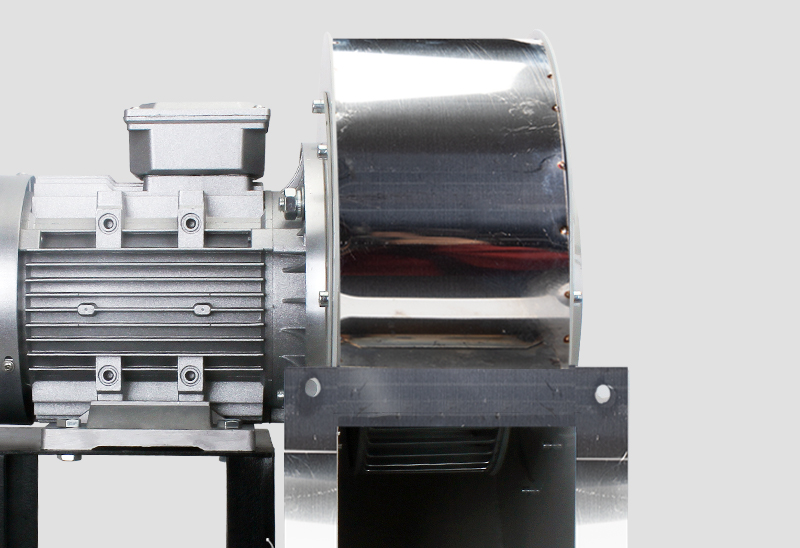

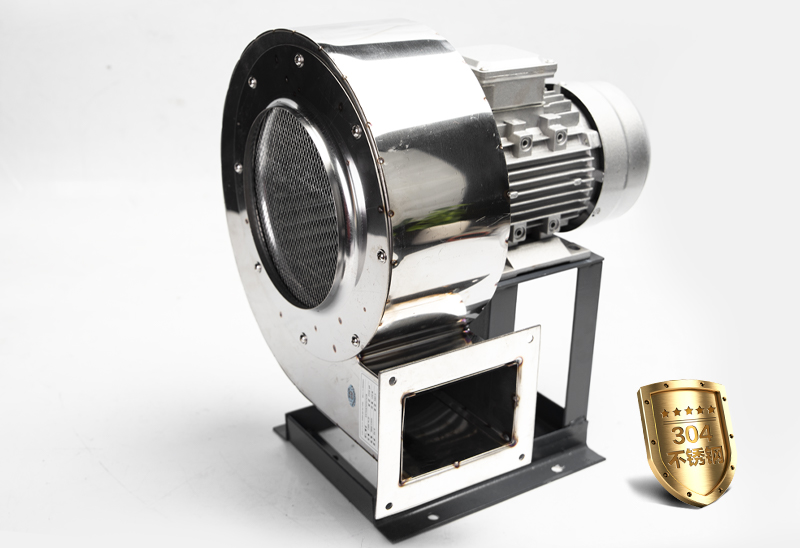

304不銹鋼蝸殼、
蝸殼采用國家級304不銹鋼焊接而成耐腐蝕 重量輕
Welded with national grade 304 stainless steel, corrosion resistant and light weight
耐高溫智能散熱
內設散熱風扇對風機進行降溫，從而電機能在高溫下運行
Hong division to performance, unremitting innovation spirit whether material or process, are elaborated. Ten years, our quality and heart never change

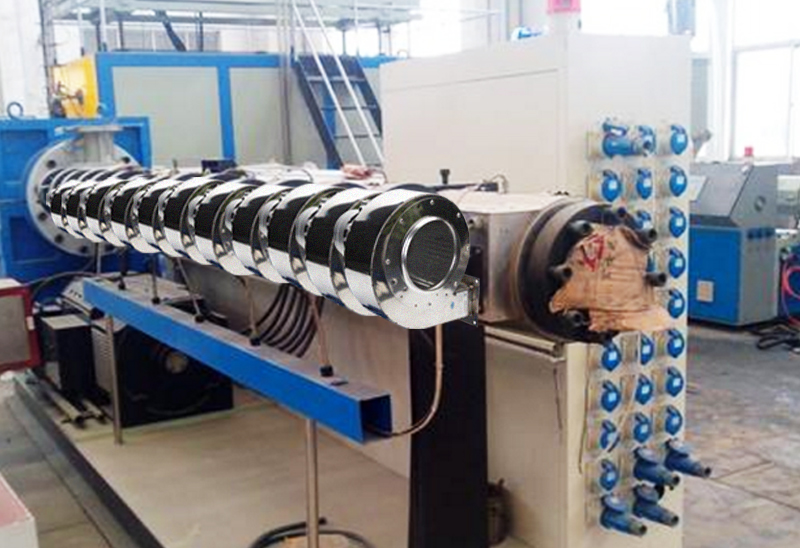

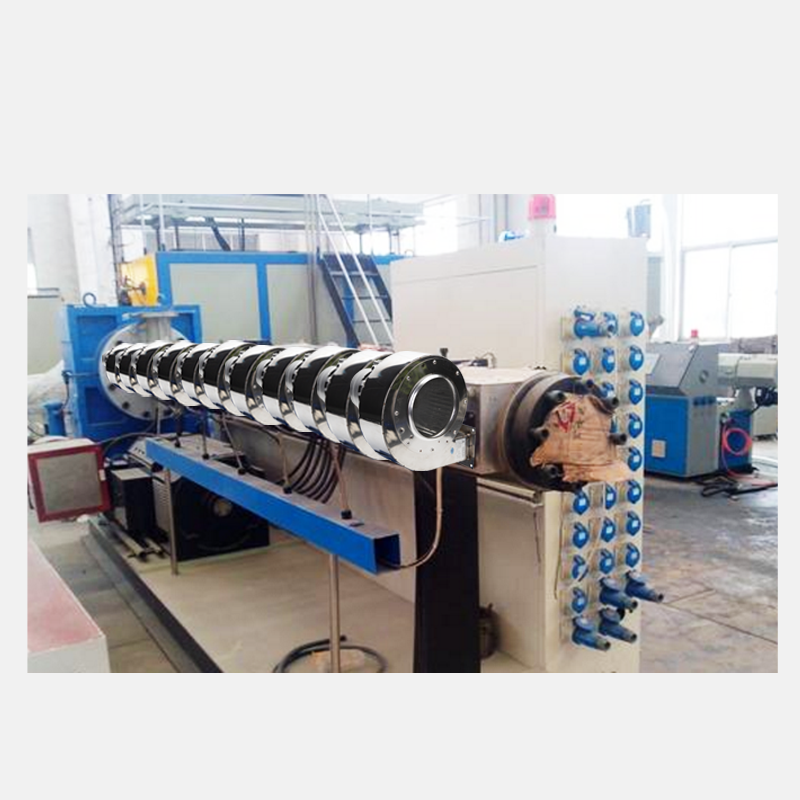

使用場景

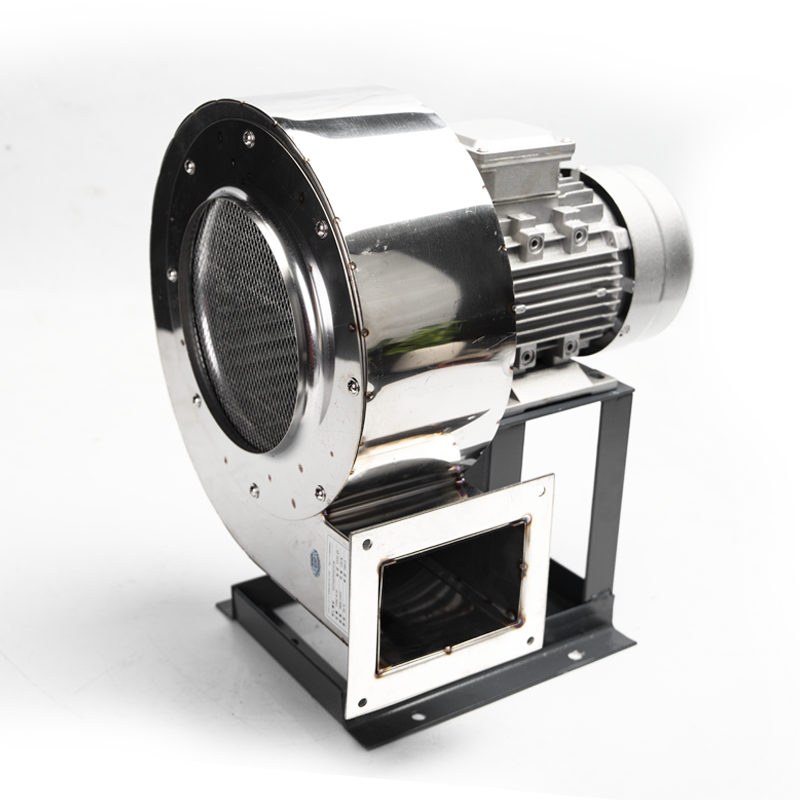

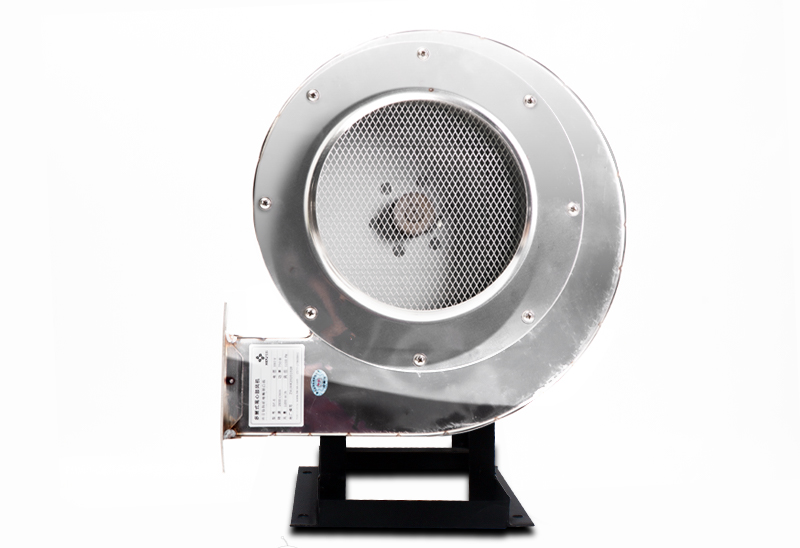

DF不銹鋼款多翼式離心風機造型美觀，安裝便利
DF stainless steel multi-wing centrifugal fan is beautiful in appearance and easy to install
DF型低噪聲離心式鼓風機的工藝設計精良，材質堅固、轉子及風葉雙面動平衡校正，耐高溫優質軸承，性能穩定可靠，該風機具
有噪聲低、效率高、壽命長、安裝方便等特點。

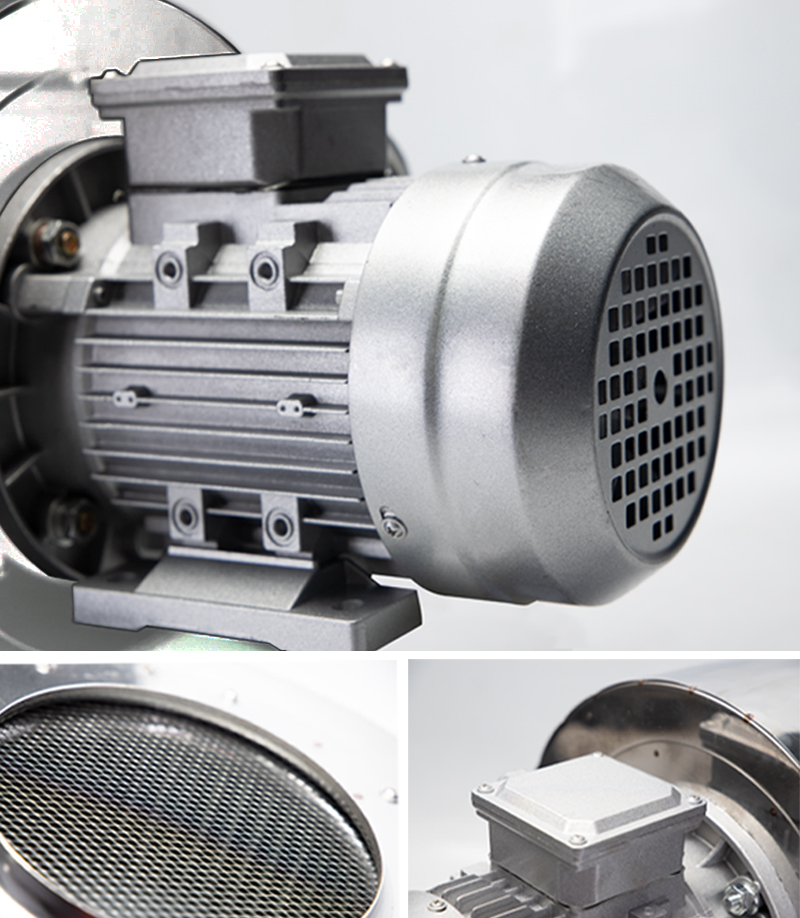

產品細節

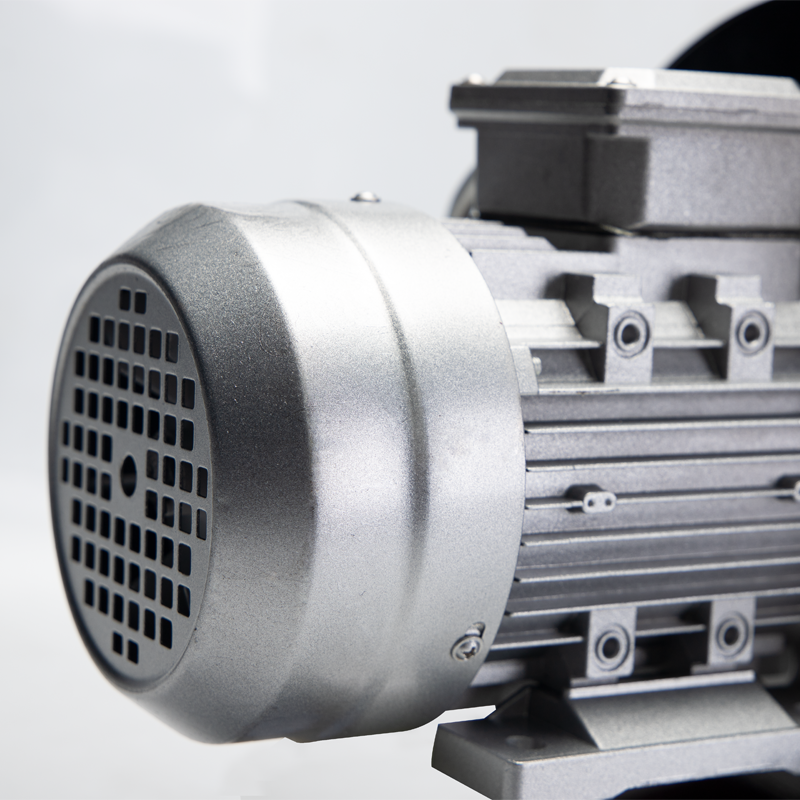

純銅高轉速電機? 轉速高達2800次/分
Pure copper high-speed motor, speed up to 2800 times/min

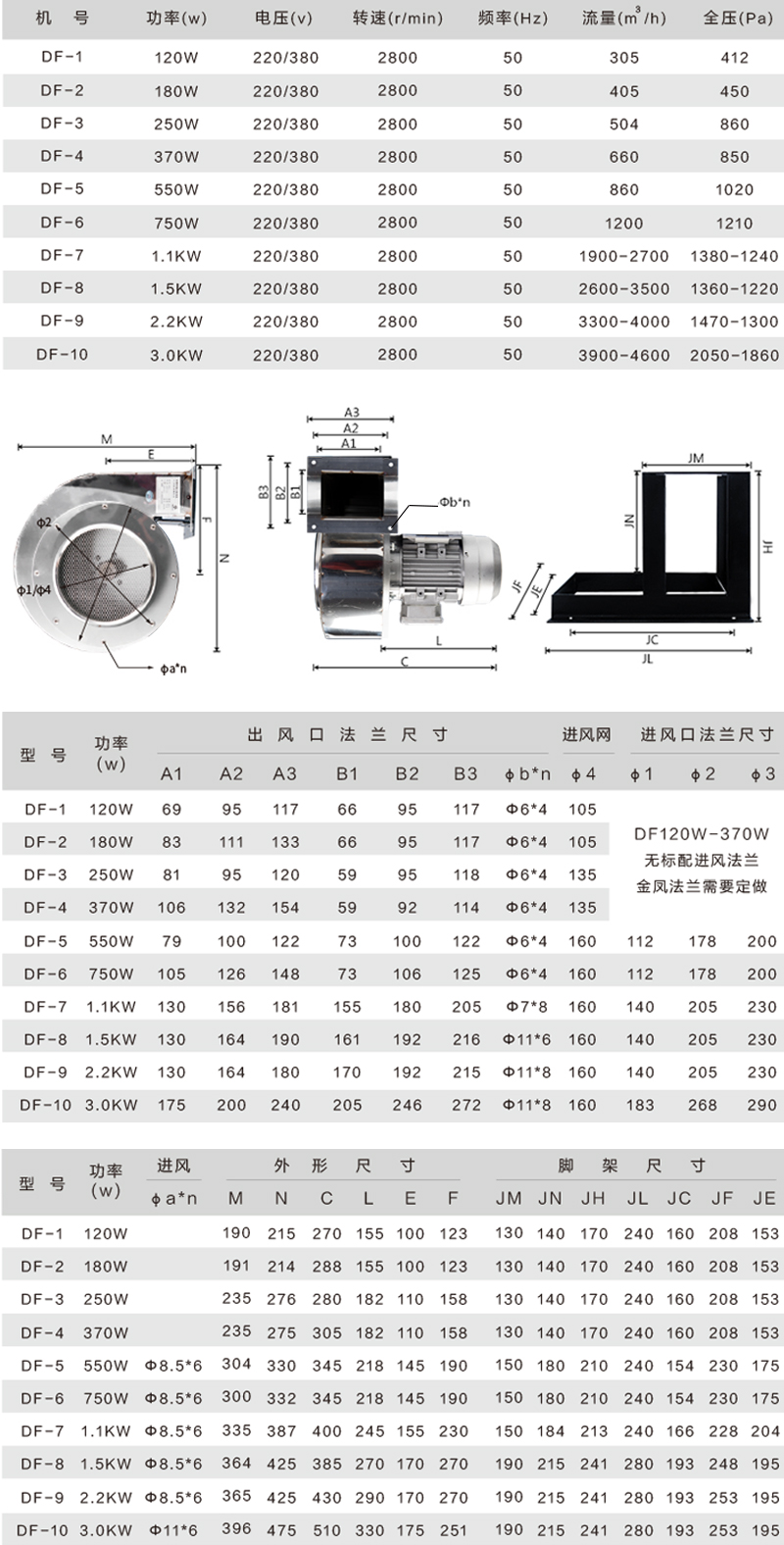

技術安裝參數
DF多翼式離心風機 參數手工測量可能會有1-2cm誤差
DF multi-blade centrifugal fan parameters manual measurement may have 1-2cm error
型號規格

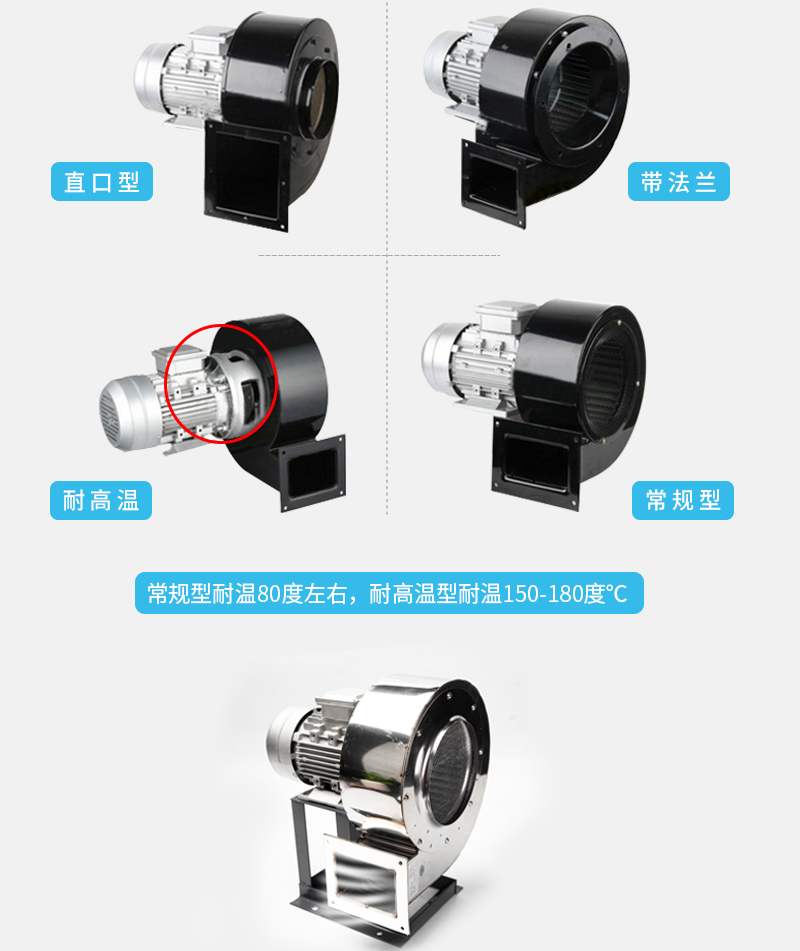

以下幾款均可做成不銹鋼外殼，葉輪與法蘭的材質與普通款相同
The following models can be made into stainless steel shell, impeller and flange material Same as ordinary models

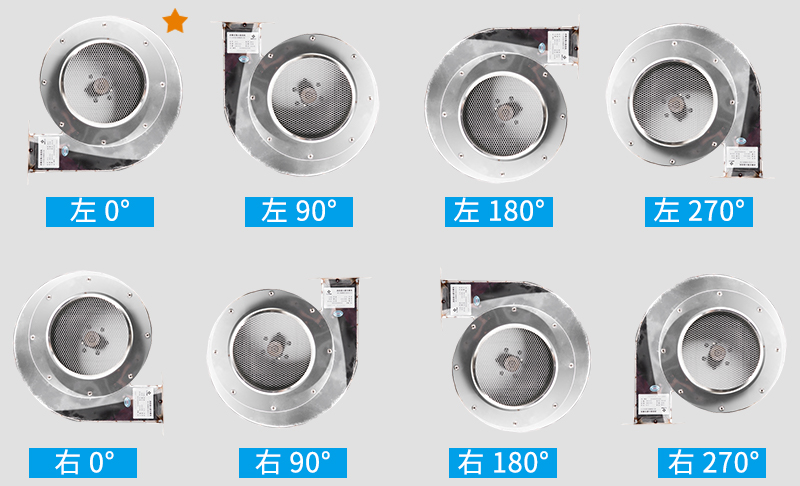

角度示意圖
出廠默認為左旋0度，如需其他角度可聯系客服定做
The factory default is 0 degree left-handed, if you need other angles, please contact customer service to customize
注：從電機端或傳動組端正視：逆時針方向旋轉為左旋；順時針方向旋轉為右旋。
注：出廠默認為左旋0度，其他角度為定做，貨期五天
